PDF Tool APIサンプルコード：パス（矩形、線、多角形、折れ線描画）の描画
PDF文書のページ上にパス（矩形、線、多角形、折れ線描画）を描画します。
概要
サンプルコードの概要
PDF文書のページ上にパス（丸角矩形・矩形・楕円・線・多角形・折れ線描画）を描画します。
- PtlContent.drawRoundRect(PtlRect, float, float, PtlParamDrawShape) :丸角矩形の描画
- PtlContent.drawRect(PtlRect, PtlParamDrawShape) :矩形の描画
- PtlContent.drawCircle(PtlRect, PtlParamDrawShape) :円形（楕円または円）の描画
- PtlContent.drawLine(PtlPoint, PtlPoint, PtlParamDrawShape) :線の描画
サンプルコード
/*
Antenna House PDF Tool API V7.0
Java Interface sample program
概要：パスの描画
Copyright 2015-2021 Antenna House, Inc.
*/
package Sample;
import jp.co.antenna.ptl.PtlColorDeviceRGB;
import jp.co.antenna.ptl.PtlContent;
import jp.co.antenna.ptl.PtlException;
import jp.co.antenna.ptl.PtlPDFDocument;
import jp.co.antenna.ptl.PtlPage;
import jp.co.antenna.ptl.PtlPages;
import jp.co.antenna.ptl.PtlParamDrawShape;
import jp.co.antenna.ptl.PtlParamInput;
import jp.co.antenna.ptl.PtlParamOutput;
import jp.co.antenna.ptl.PtlPoint;
import jp.co.antenna.ptl.PtlPoints;
import jp.co.antenna.ptl.PtlRect;
import jp.co.antenna.ptl.PtlSize;
public class DrawShape {
/**
* @param args the command line arguments
*/
public static void main(String[] args) {
if (args.length < 2)
{
System.out.println("usage: java DrawShape in-pdf-file out-pdf-file");
return;
}
try (PtlParamInput inputFile = new PtlParamInput(args[0]);
PtlParamOutput outputFile = new PtlParamOutput(args[1]);
PtlPDFDocument doc = new PtlPDFDocument())
{
// PDFファイルをロードします。
doc.load(inputFile);
try (PtlPages pages = doc.getPages()) //ページコンテナの取得
{
// ページコンテナが空かどうか
if (pages.isEmpty())
{
System.out.println("ページコンテナが空\n");
return;
}
// ページの取得
try (PtlPage page = pages.get(0))
{
// パスの描画
drawShape(page);
}
}
// ファイルに保存します。
doc.save(outputFile);
}
catch (PtlException pex) {
System.out.println("PtlException : ErrorCode = " + pex.getErrorCode() + "\n " + pex.getErrorMessage());
}
catch (Exception ex) {
System.out.println(ex.getMessage());
ex.printStackTrace();
}
catch (Error ex) {
System.out.println(ex.getMessage());
ex.printStackTrace();
}
finally {
System.out.println("-- 完了 --");
}
}
public static void drawShape(PtlPage page) throws PtlException, Exception, Error
{
try (PtlContent content = page.getContent(); // ページコンテントの取得
PtlSize pageSize = page.getSize()) // ページサイズ
{
// パス出力
try (PtlParamDrawShape paramDrawShape = new PtlParamDrawShape()) // パスの描画に使うパラメータクラス
{
// 丸角矩形の描画
try (PtlRect rect = new PtlRect(10.0f, 10.0f, pageSize.getWidth()-10.0f, pageSize.getHeight()-10.0f);
PtlColorDeviceRGB colorFill = new PtlColorDeviceRGB(1.0f, 0.0f, 0.0f);
PtlColorDeviceRGB colorStroke = new PtlColorDeviceRGB(0.0f, 0.0f, 1.0f))
{
paramDrawShape.setLineColor(colorStroke);
paramDrawShape.setFillColor(colorFill);
PtlParamDrawShape.LINE_STYLE lineStyle = PtlParamDrawShape.LINE_STYLE.LINE_STYLE_SOLID;
//int lineStyle = PtlParamDrawShape.LINE_STYLE.LINE_STYLE_DASHED;
paramDrawShape.setLineStyle(lineStyle);
//PtlParamDrawShape.LINE_WIDTH lineWidth = PtlParamDrawShape.LINE_WIDTH.LINE_WIDTH_THIN;
//PtlParamDrawShape.LINE_WIDTH lineWidth = PtlParamDrawShape.LINE_WIDTH.LINE_WIDTH_MIDDLE;
PtlParamDrawShape.LINE_WIDTH lineWidth = PtlParamDrawShape.LINE_WIDTH.LINE_WIDTH_THICK;
paramDrawShape.setLineWidth(lineWidth);
paramDrawShape.setOpacity(0.5f);
content.drawRoundRect(rect, 10.0f, 10.0f, paramDrawShape);
}
// 矩形/円の描画
try (PtlRect rect = new PtlRect(30.0f, 30.0f, pageSize.getWidth() - 30.0f, pageSize.getHeight() - 30.0f);
PtlColorDeviceRGB colorFill = new PtlColorDeviceRGB(1.0f, 1.0f, 0.0f);
PtlColorDeviceRGB colorStroke = new PtlColorDeviceRGB(0.0f, 1.0f, 1.0f))
{
paramDrawShape.setLineColor(colorStroke);
paramDrawShape.setFillColor(colorFill);
paramDrawShape.setOpacity(0.3f);
content.drawRect(rect, paramDrawShape);
content.drawCircle(rect, paramDrawShape);
}
// 線の描画
try (PtlColorDeviceRGB colorStroke = new PtlColorDeviceRGB(0.0f, 1.0f, 0.0f))
{
paramDrawShape.setLineColor(colorStroke);
try (PtlPoint from = new PtlPoint(30.0f, 30.0f);
PtlPoint to = new PtlPoint(pageSize.getWidth() - 30, pageSize.getHeight() - 30.0f))
{
content.drawLine(from, to, paramDrawShape);
}
try (PtlPoint from = new PtlPoint(30.0f, pageSize.getHeight() - 30.0f);
PtlPoint to = new PtlPoint(pageSize.getWidth() - 30.0f, 30.0f))
{
content.drawLine(from, to, paramDrawShape);
}
}
// 折れ線 PolyLine
try (PtlPoints pointsMM = new PtlPoints())
{
pointsMM.append(new PtlPoint(70.0f, 30.0f));
pointsMM.append(new PtlPoint(140.0f, 110.0f));
pointsMM.append(new PtlPoint(110.0f, 180.0f));
pointsMM.append(new PtlPoint(190.0f, 130.0f));
pointsMM.append(new PtlPoint(260.0f, 160.0f));
pointsMM.append(new PtlPoint(230.0f, 90.0f));
pointsMM.append(new PtlPoint(270.0f, 30.0f));
pointsMM.append(new PtlPoint(180.0f, 70.0f));
paramDrawShape.setLineColor(new PtlColorDeviceRGB(0.2f, 0.2f, 0.2f));
paramDrawShape.setOpacity(0.9f);
paramDrawShape.setLineWidth(PtlParamDrawShape.LINE_WIDTH.LINE_WIDTH_THICK);
content.drawPolyline(pointsMM, paramDrawShape);
}
// 多角形注釈 Polygon
try (PtlPoints pointsMM = new PtlPoints())
{
pointsMM.append(new PtlPoint(30.0f, 30.0f));
pointsMM.append(new PtlPoint(100.0f, 110.0f));
pointsMM.append(new PtlPoint(70.0f, 180.0f));
pointsMM.append(new PtlPoint(120.0f, 130.0f));
pointsMM.append(new PtlPoint(220.0f, 160.0f));
pointsMM.append(new PtlPoint(190.0f, 90.0f));
pointsMM.append(new PtlPoint(230.0f, 30.0f));
pointsMM.append(new PtlPoint(140.0f, 70.0f));
paramDrawShape.setOpacity(0.3f);
paramDrawShape.setFillColor(new PtlColorDeviceRGB(1.0f, 1.0f, 0.0f));
content.drawPolygon(pointsMM, paramDrawShape);
}
}
}
}
}
/*
Antenna House PDF Tool API V8.0
.NET Interface sample program
概要：パスの描画
Copyright 2025 Antenna House, Inc.
*/
using PdfTkNet;
using System;
using static PdfTkNet.PtlParamDrawShape;
namespace DrawShape
{
class Program
{
static void Main(string[] args)
{
if (args.Length < 2)
{
Console.WriteLine("usage: DrawShape.exe in-pdf-file out-pdf-file");
return;
}
try
{
using (PtlParamInput inputFile = new PtlParamInput(args[0]))
using (PtlParamOutput outputFile = new PtlParamOutput(args[1]))
using (PtlPDFDocument doc = new PtlPDFDocument())
{
// PDFファイルをロードします。
doc.load(inputFile);
using (PtlPages pages = doc.getPages())
{
// ページコンテナが空かどうか
if (pages.isEmpty())
{
Console.WriteLine("ページコンテナが空");
return;
}
using (PtlPage page = pages.get(0)) // 先頭ページ
{
// パスの描画
drawShape(page);
}
}
// ファイルに保存します。
doc.save(outputFile);
}
}
catch (PtlException pex)
{
Console.WriteLine(pex.getErrorCode() + " : " + pex.getErrorMessageJP());
pex.Dispose();
}
catch (Exception ex)
{
Console.WriteLine(ex.Message);
}
finally
{
Console.WriteLine("-- 完了 --");
}
}
static void drawShape(PtlPage page)
{
using (PtlContent content = page.getContent()) // ページコンテントの取得
using (PtlSize pageSize = page.getSize()) // ページサイズ
{
// パス出力
using (PtlParamDrawShape paramDrawShape = new PtlParamDrawShape()) // パスの描画に使うパラメータクラス
{
// 丸角矩形の描画
using (PtlRect rect = new PtlRect(10.0f, 10.0f, pageSize.getWidth()-10.0f, pageSize.getHeight()-10.0f))
using (PtlColorDeviceRGB colorFill = new PtlColorDeviceRGB(1.0f, 0.0f, 0.0f))
using (PtlColorDeviceRGB colorStroke = new PtlColorDeviceRGB(0.0f, 0.0f, 1.0f))
{
paramDrawShape.setLineColor(colorStroke);
paramDrawShape.setFillColor(colorFill);
PtlParamDrawShape.LINE_STYLE lineStyle = PtlParamDrawShape.LINE_STYLE.LINE_STYLE_SOLID; // 実線
//PtlParamDrawShape.LINE_STYLE lineStyle = PtlParamDrawShape.LINE_STYLE.LINE_STYLE_DASHED; // 点線
paramDrawShape.setLineStyle(lineStyle);
//PtlParamDrawShape.LINE_WIDTH lineWidth = PtlParamDrawShape.LINE_WIDTH.LINE_WIDTH_THIN; // 細
//PtlParamDrawShape.LINE_WIDTH lineWidth = PtlParamDrawShape.LINE_WIDTH.LINE_WIDTH_MIDDLE; // 中
PtlParamDrawShape.LINE_WIDTH lineWidth = PtlParamDrawShape.LINE_WIDTH.LINE_WIDTH_THICK; // 太
paramDrawShape.setLineWidth(lineWidth); // 線の太さ
paramDrawShape.setOpacity(0.5f);
content.drawRoundRect(rect, 10.0f, 10.0f, paramDrawShape); // 角丸矩形の描画
}
// 矩形/円の描画
using (PtlRect rect = new PtlRect(30.0f, 30.0f, pageSize.getWidth() - 30.0f, pageSize.getHeight() - 30.0f))
using (PtlColorDeviceRGB colorFill = new PtlColorDeviceRGB(1.0f, 1.0f, 0.0f))
using (PtlColorDeviceRGB colorStroke = new PtlColorDeviceRGB(0.0f, 1.0f, 1.0f))
{
paramDrawShape.setLineColor(colorStroke);
paramDrawShape.setFillColor(colorFill);
paramDrawShape.setOpacity(0.3f);
content.drawRect(rect, paramDrawShape); // 矩形の描画
content.drawCircle(rect, paramDrawShape); // 円の描画
}
// 線の描画
using (PtlColorDeviceRGB colorStroke = new PtlColorDeviceRGB(0.0f, 1.0f, 0.0f))
{
paramDrawShape.setLineColor(colorStroke);
using (PtlPoint from = new PtlPoint(30.0f, 30.0f))
using (PtlPoint to = new PtlPoint(pageSize.getWidth() - 30, pageSize.getHeight() - 30.0f))
{
content.drawLine(from, to, paramDrawShape); // 線の描画
}
using (PtlPoint from = new PtlPoint(30.0f, pageSize.getHeight() - 30.0f))
using (PtlPoint to = new PtlPoint(pageSize.getWidth() - 30.0f, 30.0f))
{
content.drawLine(from, to, paramDrawShape); // 線の描画
}
}
// 折れ線 PolyLine
using (PtlPoints pointsMM = new PtlPoints())
{
pointsMM.append(new PtlPoint(70.0f, 30.0f));
pointsMM.append(new PtlPoint(140.0f, 110.0f));
pointsMM.append(new PtlPoint(110.0f, 180.0f));
pointsMM.append(new PtlPoint(190.0f, 130.0f));
pointsMM.append(new PtlPoint(260.0f, 160.0f));
pointsMM.append(new PtlPoint(230.0f, 90.0f));
pointsMM.append(new PtlPoint(270.0f, 30.0f));
pointsMM.append(new PtlPoint(180.0f, 70.0f));
paramDrawShape.setLineColor(new PtlColorDeviceRGB(0.2f, 0.2f, 0.2f));
paramDrawShape.setOpacity(0.9f);
paramDrawShape.setLineWidth(PtlParamDrawShape.LINE_WIDTH.LINE_WIDTH_THICK);
content.drawPolyline(pointsMM, paramDrawShape);
}
// 多角形注釈 Polygon
using (PtlPoints pointsMM = new PtlPoints())
{
pointsMM.append(new PtlPoint(30.0f, 30.0f));
pointsMM.append(new PtlPoint(100.0f, 110.0f));
pointsMM.append(new PtlPoint(70.0f, 180.0f));
pointsMM.append(new PtlPoint(120.0f, 130.0f));
pointsMM.append(new PtlPoint(220.0f, 160.0f));
pointsMM.append(new PtlPoint(190.0f, 90.0f));
pointsMM.append(new PtlPoint(230.0f, 30.0f));
pointsMM.append(new PtlPoint(140.0f, 70.0f));
paramDrawShape.setOpacity(0.3f);
paramDrawShape.setFillColor(new PtlColorDeviceRGB(1.0f, 1.0f, 0.0f));
content.drawPolygon(pointsMM, paramDrawShape);
}
}
}
}
}
}
実行例
コマンドラインでの実行例
DrawShape.exe C:\in\test.pdf C:\sav\outDrawShape.pdf 完了!
java -jar DrawShape.jar C:\in\test.pdf C:\sav\outDrawShape.pdf -- 完了 --
DrawShape.exe C:\in\test.pdf C:\sav\outDrawShape.pdf -- 完了 --

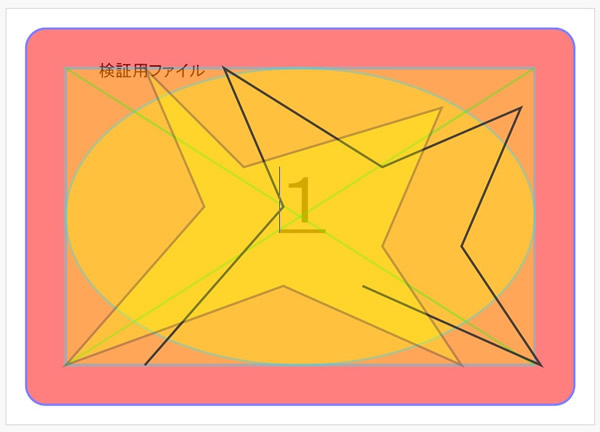

出力結果イメージ
出力されたPDFの1ページ目に丸角矩形・矩形・楕円・線・多角形・折れ線描画が追加されている。
